e bike cube kathmandu hybrid pro 750 CUBE Bikes Kathmandu Hybrid EXC 750

Details

Details
Designed for comfort, versatility and durability, the Kathmandu's frame – whether you choose the Men's version, the Trapeze or the Easy Entry – incorporates a high-capacity Bosch battery for the best possible range. Efficient Comfort Geometry works exactly the way you'd expect it to, meaning you can pedal in comfort for miles and miles. And the Integrated Carrier 3.0 is as strong as its predecessors, but even better integrated with the rear mudguard for an elegantly understated look that you'll love – and it's the perfect way to add accessories and carry whatever you need with you.
The Kathmandu Hybrid EXC 750 features our largest-capacity battery, so you can ride for longer. We've kept all the best bits, like Bosch's fourth-generation CX drive system, and added the reliability and huge range of Shimano's Deore 1x12 gears – which will help you tackle any route with ease. Powerful four-piston Shimano hydraulic disc brakes have the stopping power to keep you safe in all weathers. A suspension seatpost, adjustable stem, and air-sprung Suntour suspension fork ensure you're comfortable, even for long days out. And, the Integrated Carrier 3.0, mudguards, lighting system, and kickstand give you the tools you need for any errand or adventure.
With our specially designed Efficient Comfort Geometry, cycling is a simple pleasure. Whether you're popping across town or exploring further afield, taking a ride with the family or with friends, for work or for pleasure, we've created a ride experience that will have you coming back for more.
A wider hub makes a stiffer wheel, and a stiffer wheel means better handling. That's the thinking behind the Boost 148 rear hub standard, which allows wider flange spacing for better wheel performance without impacting on shifting accuracy or drivetrain efficiency. Simply put, you can go faster and harder with better handling and stronger wheels.

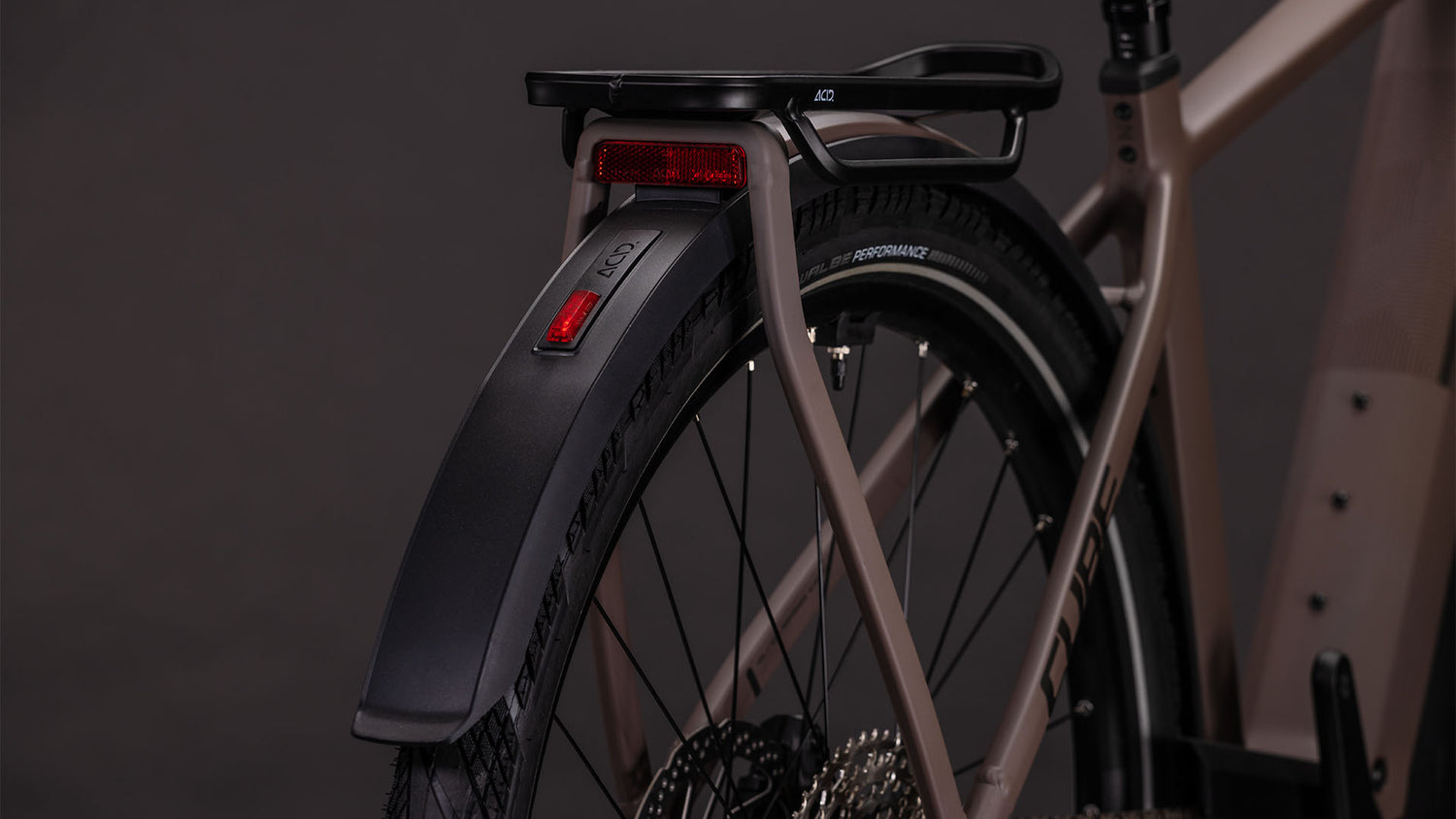

The Integrated Carrier 3.0 is the next level in system integration: from the side, it's hard to tell where the luggage carrier ends and the mudguard begins. But it doesn't just look good, it's also incredibly strong and rigid. With an integrated spring clamp and CUBE Rilink ready adaptor for mounting bags and baskets, it transforms your CUBE into an adaptable and versatile load carrier.
In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high capacity batteries. You'll wonder how you ever managed without it.
Geometry
Sizes:
SIZE
Small
Medium
Large
X-Large
Seat tube (mm)
480
520
560
600
Top Tube Horizontal (mm)
634
635
640
650
Seat angle (°)
74°
74°
74°
74°
Head tube angle (°)
67.5°
67.5°
67.5°
67.5°
Chainstays (mm)
460
460
460
460
Head tube (mm)
124
124
143
164
Wheelbase (mm)
1196
1197
1203
1215
BB-Height to Hub (mm)
75
75
75
75
Protrusion height - 80mm
797
823
856
889
Reach (mm)
451
452
451
455
Stack (mm)
644
644
661
681
